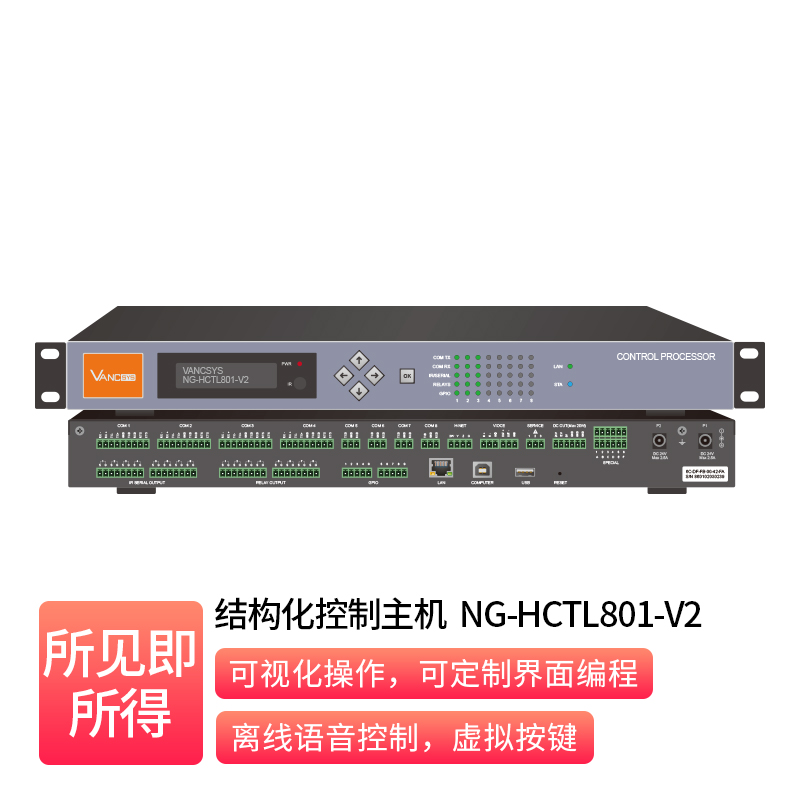

NG-HCTL801-V2  is  a  visual  structure  control  service  host.  It  can  provide  a  WYSIWYG  visual  operation  for  structured  systems.  The  visual  interface  is  built  into  the  host  and  is  not  affected  by  the  replacement  of  operation  terminals.  Supports  connection  to  PC,  Android,  IOS  computers,  tablets  or  mobile  terminals.  It  supports  providing  a  standard  operation  interface,  while  also  supporting  customized  interfaces  and  programming.  It  is  equipped  with  a  rich  set  of  environmental  control  interfaces  to  facilitate  the  integration  of  environmental  devices  with  structured  systems.  It  is  equipped  with  built-in  offline  voice  control  and  can  be  connected  to  external  voice  signals.  It  provides  multiple  sets  of  virtual  buttons  for  emergency  control,  allowing  users  to  control  environmental  facilities  without  any  control  end  users.

1.    It  runs  an  embedded  Linux  kernel  system,  which  is  stable  and  reliable,  and  can  efficiently  manage,  control  and  interact  data  with  the  video  system

2.    It  is  embedded  with  control  server  software  and  web  management  system,  supporting  computers,  mobile  phones,  Apple  and  Android  terminals  to  connect  to  the  host  for  control  and  management  through  C/S  or  B/S  architecture

3.    Standard  1U  rack-mounted  installation,  stable  structure,  excellent  heat  dissipation,  supporting  24x365  long-term  operation

4.  It  provides  4  channels  of  RS232/422/485,  4  channels  of  RS232,  1  custom  multi-functional  port,  8  channels  of  IR,  8  channels  of  Relay  and  8  channels  of  IO  for  environmental  control,  and  supports  network  control  such  as  TCP  and  UDP

5.    The  default  of  the  custom  multi-functional  port  is  RS232.    It  CAN  be  optionally  equipped  In  advance  with  functions  such  as  RS485,  RS422,  0~10V,  GPIO,  Relay,  IR  In,  IR  Out,  KNX,  CAN,  DMX,  Zigbee,  RF,  volume  control,  and  music  playback  control  according  to  environmental  requirements

6.    It  features  offline  voice  control  and  supports  external  balanced  analog  voice  input  and  output

7.    It  provides  DC5V/12V/24V  power  output,  which  can  directly  power  sensors,  relays  or  peripheral  devices,  simplifying  the  installation  of  peripheral  accessories

8.    The  front  panel  is  equipped  with  status  indicator  lights,  an  LCD  display  and  physical  buttons,  providing  emergency  control  keys  and  customizable  key  functions.

9.    It  simultaneously  supports  zero-code,  list  configuration  and  advanced  code-based  programming.    The  control  program  and  operation  interface  can  be  customized

10.  The  control  program  and  operation  interface  are  stored  in  the  operation  host  and  are  not  affected  by  terminal  replacement

11.    Dual  power  supply  redundant  hot  standby,  with  an  external  power  supply  of  DC24V
